Bump Mapping With Javascript And Glsl
Hey there I`m trying since a while now to add a second texture to my cube and do some bump mapping. But I am a progam beginner, so its kinda hard for me. All my maths for the ma
Solution 1:
With a normal map as in the question, Bump mapping can be performed. At bump mapping the normal vector of a fragment is read from a normal map and used for the light calculations. In general the incident light vector is transformed into texture space. This is the "orientation" of the normal map on the object (fragment). In order to set up a 3x3 orientation matrix that describes the orientation of the map, the tangent vector and the bi-tangent vector as well as the normal vector must be known. If there is no tangent vector and no bi-tangent vector, the vectors can be approximated by the partial derivative of the vertex position and the texture coordinate in the fragment shader.
So at least the texture coordinate and the normal vector attribute are required. In the fragment shader the calculations are done in world space respectively texture space. The vertex shader is straight forward:
precision highp float;
attribute vec3 a_position;
attribute vec3 a_normal;
attribute vec2 a_texCoord;
varying vec3 w_pos;
varying vec3 w_nv;
varying vec2 o_uv;
uniform mat4 P;
uniform mat4 V;
uniform mat4 M;
voidmain()
{
o_uv = a_texCoord;
w_nv = normalize(mat3(M) * a_normal);
vec4 worldPos = M * vec4(a_position, 1.0);
w_pos = worldPos.xyz;
gl_Position = P * V * worldPos;
}
In the fragment shader, the normal vector is read from the normal map:
vec3 mapN = normalize(texture2D(u_normal_map, o_uv.st).xyz * 2.0 - 1.0);
The light vector is transformed to texture space:
vec3 L = tbn_inv * normalize(u_light_pos - w_pos);
With this vector the light calculations can be performed:
float kd = max(0.0, dot(mapN, L));
To calculate the matrix which transforms form world space to texture space, the partial derivative functions (dFdx, dFdy) are required. This causes that the "OES_standard_derivatives" has to be enabled (or "webgl2" context):
gl = canvas.getContext( "experimental-webgl" );
var standard_derivatives = gl.getExtension("OES_standard_derivatives");
The algorithm to calculate the tangent vector and binormal vector is explained in another answer - How to calculate Tangent and Binormal?.
Final fragment shader:
#extension GL_OES_standard_derivatives : enable
precision mediump float;
varying vec3 w_pos;
varying vec3 w_nv;
varying vec2 o_uv;
uniform vec3 u_light_pos;
uniform sampler2D u_diffuse;
uniform sampler2D u_normal_map;
voidmain()
{
vec3 N = normalize(w_nv);
vec3 dp1 = dFdx( w_pos );
vec3 dp2 = dFdy( w_pos );
vec2 duv1 = dFdx( o_uv );
vec2 duv2 = dFdy( o_uv );
vec3 dp2perp = cross(dp2, N);
vec3 dp1perp = cross(N, dp1);
vec3 T = dp2perp * duv1.x + dp1perp * duv2.x;
vec3 B = dp2perp * duv1.y + dp1perp * duv2.y;
float invmax = inversesqrt(max(dot(T, T), dot(B, B)));
mat3 tm = mat3(T * invmax, B * invmax, N);
mat3 tbn_inv = mat3(vec3(tm[0].x, tm[1].x, tm[2].x), vec3(tm[0].y, tm[1].y, tm[2].y), vec3(tm[0].z, tm[1].z, tm[2].z));
vec3 L = tbn_inv * normalize(u_light_pos - w_pos);
vec3 mapN = normalize(texture2D(u_normal_map, o_uv.st).xyz * 2.0 - 1.0);
float kd = max(0.0, dot(mapN, L));
vec3 color = texture2D(u_diffuse, o_uv.st).rgb;
vec3 light_col = (0.0 + kd) * color.rgb;
gl_FragColor = vec4(clamp(light_col, 0.0, 1.0), 1.0);
}

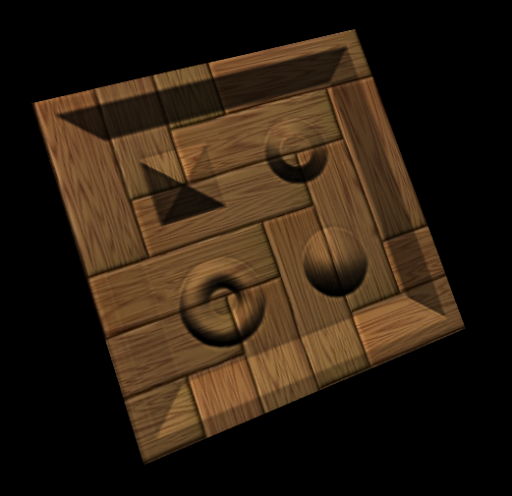

And will produce bump mapping like this:
If the tangent vector is know the calculation of tbn_inv matrix can be simplified very much:
mat3 tm = mat3(normalize(w_tv), normalize(cross(w_nv, w_tv)), normalize(w_nv));
mat3 tbn_inv = mat3(vec3(tm[0].x, tm[1].x, tm[2].x), vec3(tm[0].y, tm[1].y, tm[2].y), vec3(tm[0].z, tm[1].z, tm[2].z));
If you want Parallax mapping like in this Example then a displacement map is required, too.
The white areas on this map are pushed "into" the object. The algorithm is described in detail at LearnOpengl - Parallax Mapping. The idea is that each fragment is associated to a height of the displacement map. This can be imagined as a rectangular pillar standing on the fragment. The view ray is tracked until a displaced fragment is hit.
For a high performance algorithm samples are taken of the displacement texture. When a fragment is identified, then the corresponding fragment of the e normal map and the diffuse texture is read. This gives a 3 dimensional look of the geometry. Note this algorithm is bot able to handle silhouettes.
Final fragment shader with steep parallax mapping:
#extension GL_OES_standard_derivatives : enable
precision mediump float;
varying vec3 w_pos;
varying vec3 w_nv;
varying vec2 o_uv;
uniform float u_height_scale;
uniform vec3 u_light_pos;
uniform vec3 u_view_pos;
uniform sampler2D u_diffuse;
uniform sampler2D u_normal_map;
uniform sampler2D u_displacement_map;
vec2 ParallaxMapping(vec2 texCoord, vec3 viewDir)
{
float numLayers = 32.0 - 31.0 * abs(dot(vec3(0.0, 0.0, 1.0), viewDir));
float layerDepth = 1.0 / numLayers;
vec2 P = viewDir.xy / viewDir.z * u_height_scale;
vec2 deltaTexCoords = P / numLayers;
vec2 currentTexCoords = texCoord;
float currentLayerDepth = 0.0;
float currentDepthMapValue = texture2D(u_displacement_map, currentTexCoords).r;
for (int i=0; i<32; ++ i)
{
if (currentLayerDepth >= currentDepthMapValue)
break;
currentTexCoords -= deltaTexCoords;
currentDepthMapValue = texture2D(u_displacement_map, currentTexCoords).r;
currentLayerDepth += layerDepth;
}
vec2 prevTexCoords = currentTexCoords + deltaTexCoords;
float afterDepth = currentDepthMapValue - currentLayerDepth;
float beforeDepth = texture2D(u_displacement_map, prevTexCoords).r - currentLayerDepth + layerDepth;
float weight = afterDepth / (afterDepth - beforeDepth);
return prevTexCoords * weight + currentTexCoords * (1.0 - weight);
}
voidmain()
{
vec3 N = normalize(w_nv);
vec3 dp1 = dFdx( w_pos );
vec3 dp2 = dFdy( w_pos );
vec2 duv1 = dFdx( o_uv );
vec2 duv2 = dFdy( o_uv );
vec3 dp2perp = cross(dp2, N);
vec3 dp1perp = cross(N, dp1);
vec3 T = dp2perp * duv1.x + dp1perp * duv2.x;
vec3 B = dp2perp * duv1.y + dp1perp * duv2.y;
float invmax = inversesqrt(max(dot(T, T), dot(B, B)));
mat3 tm = mat3(T * invmax, B * invmax, N);
mat3 tbn_inv = mat3(vec3(tm[0].x, tm[1].x, tm[2].x), vec3(tm[0].y, tm[1].y, tm[2].y), vec3(tm[0].z, tm[1].z, tm[2].z));
vec3 view_dir = tbn_inv * normalize(w_pos - u_view_pos);
vec2 uv = ParallaxMapping(o_uv, view_dir);
if (uv.x > 1.0 || uv.y > 1.0 || uv.x < 0.0 || uv.y < 0.0)
discard;
vec3 L = tbn_inv * normalize(u_light_pos - w_pos);
vec3 mapN = normalize(texture2D(u_normal_map, uv.st).xyz * 2.0 - 1.0);
float kd = max(0.0, dot(mapN, L));
vec3 color = texture2D(u_diffuse, uv.st).rgb;
vec3 light_col = (0.1 + kd) * color.rgb;
gl_FragColor = vec4(clamp(light_col, 0.0, 1.0), 1.0);
}
The result is much more impressive:
(functionloadscene() {
var gl, progDraw, vp_size;
var bufCube = {};
var diffuse_tex = 1;
var height_tex = 2;
var normal_tex = 3;
functionrender(deltaMS){
var height_scale = 0.3 * document.getElementById("height").value / 100.0;
// setup view projection and model
vp_size = [canvas.width, canvas.height];
camera.Update( vp_size );
var prjMat = camera.Perspective();
var viewMat = camera.LookAt();
var modelMat = camera.AutoModelMatrix();
gl.viewport( 0, 0, vp_size[0], vp_size[1] );
gl.enable( gl.DEPTH_TEST );
gl.clearColor( 0.0, 0.0, 0.0, 1.0 );
gl.clear( gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT );
gl.frontFace(gl.CCW)
gl.cullFace(gl.BACK)
gl.enable(gl.CULL_FACE)
// set up draw shaderShProg.Use( progDraw );
ShProg.SetF3( progDraw, "u_view_pos", camera.pos )
ShProg.SetF3( progDraw, "u_light_pos", [0.0, 5.0, 5.0] )
ShProg.SetF1( progDraw, "u_height_scale", height_scale );
ShProg.SetI1( progDraw, "u_diffuse", diffuse_tex );
ShProg.SetI1( progDraw, "u_displacement_map", height_tex );
ShProg.SetI1( progDraw, "u_normal_map", normal_tex );
ShProg.SetM44( progDraw, "P", prjMat );
ShProg.SetM44( progDraw, "V", viewMat );
ShProg.SetM44( progDraw, "M", modelMat );
// draw sceneVertexBuffer.Draw( bufCube );
requestAnimationFrame(render);
}
functioninitScene() {
canvas = document.getElementById( "canvas");
gl = canvas.getContext( "experimental-webgl" );
var standard_derivatives = gl.getExtension("OES_standard_derivatives"); // dFdx, dFdyif (!standard_derivatives)
alert('no standard derivatives support (no dFdx, dFdy)');
//gl = canvas.getContext( "webgl2" );if ( !gl )
returnnull;
progDraw = ShProg.Create(
[ { source : "draw-shader-vs", stage : gl.VERTEX_SHADER },
{ source : "draw-shader-fs", stage : gl.FRAGMENT_SHADER }
] );
if ( !progDraw.progObj )
returnnull;
progDraw.inPos = ShProg.AttrI( progDraw, "a_position" );
progDraw.inNV = ShProg.AttrI( progDraw, "a_normal" );
progDraw.inUV = ShProg.AttrI( progDraw, "a_texCoord" );
// create cubeletPos = [ -1,-1,1, 1,-1,1, 1,1,1, -1,1,1, -1,-1,-1, 1,-1,-1, 1,1,-1, -1,1,-1 ];
letCol = [ 1,0,0, 1,0.5,0, 1,0,1, 1,1,0, 0,1,0, 0, 0, 1 ];
letNV = [ 0,0,1, 1,0,0, 0,0,-1, -1,0,0, 0,1,0, 0,-1,0 ];
letTV = [ 1,0,0, 0,0,-1, -1,0,0, 0,0,1, 1,0,0, -1,0,0 ];
var cubeHlpInx = [ 0,1,2,3, 1,5,6,2, 5,4,7,6, 4,0,3,7, 3,2,6,7, 1,0,4,5 ];
var cubePosData = [];
for ( var i = 0; i < cubeHlpInx.length; ++ i ) cubePosData.push(Pos[cubeHlpInx[i]*3], Pos[cubeHlpInx[i]*3+1], Pos[cubeHlpInx[i]*3+2] );
var cubeNVData = [];
for ( var i1 = 0; i1 < 6; ++ i1 ) {
for ( i2 = 0; i2 < 4; ++ i2 ) cubeNVData.push(NV[i1*3], NV[i1*3+1], NV[i1*3+2]);
}
var cubeTVData = [];
for ( var i1 = 0; i1 < 6; ++ i1 ) {
for ( i2 = 0; i2 < 4; ++ i2 ) cubeTVData.push(TV[i1*3], TV[i1*3+1], TV[i1*3+2]);
}
var cubeColData = [];
for ( var is = 0; is < 6; ++ is ) {
for ( var ip = 0; ip < 4; ++ ip ) cubeColData.push(Col[is*3], Col[is*3+1], Col[is*3+2]);
}
var cubeTexData = []
for ( var i = 0; i < 6; ++ i ) cubeTexData.push( 0, 0, 1, 0, 1, 1, 0, 1 );
var cubeInxData = [];
for ( var i = 0; i < cubeHlpInx.length; i += 4 ) cubeInxData.push( i, i+1, i+2, i, i+2, i+3 );
bufCube = VertexBuffer.Create(
[ { data : cubePosData, attrSize : 3, attrLoc : progDraw.inPos },
{ data : cubeNVData, attrSize : 3, attrLoc : progDraw.inNV },
//{ data : cubeTVData, attrSize : 3, attrLoc : progDraw.inTV },
{ data : cubeTexData, attrSize : 2, attrLoc : progDraw.inUV },
//{ data : cubeColData, attrSize : 3, attrLoc : progDraw.inCol },
],
cubeInxData, gl.TRIANGLES );
Texture.LoadTexture2D( diffuse_tex, "https://raw.githubusercontent.com/Rabbid76/graphics-snippets/master/resource/texture/woodtiles.jpg" );
Texture.LoadTexture2D( height_tex, "https://raw.githubusercontent.com/Rabbid76/graphics-snippets/master/resource/texture/toy_box_disp.png" );
Texture.LoadTexture2D( normal_tex, "https://raw.githubusercontent.com/Rabbid76/graphics-snippets/master/resource/texture/toy_box_normal.png" );
camera = newCamera( [0, 3, 0], [0, 0, 0], [0, 0, 1], 90, vp_size, 0.5, 100 );
window.onresize = resize;
resize();
requestAnimationFrame(render);
}
functionresize() {
//vp_size = [gl.drawingBufferWidth, gl.drawingBufferHeight];
vp_size = [window.innerWidth, window.innerHeight];
//vp_size = [256, 256];
canvas.width = vp_size[0];
canvas.height = vp_size[1];
}
functionFract( val ) {
return val - Math.trunc( val );
}
functionCalcAng( deltaTime, interval ) {
returnFract( deltaTime / (1000*interval) ) * 2.0 * Math.PI;
}
functionCalcMove( deltaTime, interval, range ) {
var pos = self.Fract( deltaTime / (1000*interval) ) * 2.0var pos = pos < 1.0 ? pos : (2.0-pos)
return range[0] + (range[1] - range[0]) * pos;
}
functionIdentM44() {
return [ 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1 ];
};
functionRotateAxis(matA, angRad, axis) {
var aMap = [ [1, 2], [2, 0], [0, 1] ];
var a0 = aMap[axis][0], a1 = aMap[axis][1];
var sinAng = Math.sin(angRad), cosAng = Math.cos(angRad);
var matB = matA.slice(0);
for ( var i = 0; i < 3; ++ i ) {
matB[a0*4+i] = matA[a0*4+i] * cosAng + matA[a1*4+i] * sinAng;
matB[a1*4+i] = matA[a0*4+i] * -sinAng + matA[a1*4+i] * cosAng;
}
return matB;
}
functionRotate(matA, angRad, axis) {
var s = Math.sin(angRad), c = Math.cos(angRad);
var x = axis[0], y = axis[1], z = axis[2];
matB = [
x*x*(1-c)+c, x*y*(1-c)-z*s, x*z*(1-c)+y*s, 0,
y*x*(1-c)+z*s, y*y*(1-c)+c, y*z*(1-c)-x*s, 0,
z*x*(1-c)-y*s, z*y*(1-c)+x*s, z*z*(1-c)+c, 0,
0, 0, 0, 1 ];
returnMultiply(matA, matB);
}
functionMultiply(matA, matB) {
matC = IdentM44();
for (var i0=0; i0<4; ++i0 )
for (var i1=0; i1<4; ++i1 )
matC[i0*4+i1] = matB[i0*4+0] * matA[0*4+i1] + matB[i0*4+1] * matA[1*4+i1] + matB[i0*4+2] * matA[2*4+i1] + matB[i0*4+3] * matA[3*4+i1]
return matC;
}
functionCross( a, b ) { return [ a[1] * b[2] - a[2] * b[1], a[2] * b[0] - a[0] * b[2], a[0] * b[1] - a[1] * b[0], 0.0 ]; }
functionDot( a, b ) { return a[0]*b[0] + a[1]*b[1] + a[2]*b[2]; }
functionNormalize( v ) {
var len = Math.sqrt( v[0] * v[0] + v[1] * v[1] + v[2] * v[2] );
return [ v[0] / len, v[1] / len, v[2] / len ];
}
Camera = function( pos, target, up, fov_y, vp, near, far ) {
this.Time = function() { returnDate.now(); }
this.pos = pos;
this.target = target;
this.up = up;
this.fov_y = fov_y;
this.vp = vp;
this.near = near;
this.far = far;
this.orbit_mat = this.current_orbit_mat = this.model_mat = this.current_model_mat = IdentM44();
this.mouse_drag = this.auto_spin = false;
this.auto_rotate = true;
this.mouse_start = [0, 0];
this.mouse_drag_axis = [0, 0, 0];
this.mouse_drag_angle = 0;
this.mouse_drag_time = 0;
this.drag_start_T = this.rotate_start_T = this.Time();
this.Ortho = function() {
var fn = this.far + this.near;
var f_n = this.far - this.near;
var w = this.vp[0];
var h = this.vp[1];
return [
2/w, 0, 0, 0,
0, 2/h, 0, 0,
0, 0, -2/f_n, 0,
0, 0, -fn/f_n, 1 ];
};
this.Perspective = function() {
var n = this.near;
var f = this.far;
var fn = f + n;
var f_n = f - n;
var r = this.vp[0] / this.vp[1];
var t = 1 / Math.tan( Math.PI * this.fov_y / 360 );
return [
t/r, 0, 0, 0,
0, t, 0, 0,
0, 0, -fn/f_n, -1,
0, 0, -2*f*n/f_n, 0 ];
};
this.LookAt = function() {
var mz = Normalize( [ this.pos[0]-this.target[0], this.pos[1]-this.target[1], this.pos[2]-this.target[2] ] );
var mx = Normalize( Cross( this.up, mz ) );
var my = Normalize( Cross( mz, mx ) );
var tx = Dot( mx, this.pos );
var ty = Dot( my, this.pos );
var tz = Dot( [-mz[0], -mz[1], -mz[2]], this.pos );
return [mx[0], my[0], mz[0], 0, mx[1], my[1], mz[1], 0, mx[2], my[2], mz[2], 0, tx, ty, tz, 1];
};
this.AutoModelMatrix = function() {
returnthis.auto_rotate ? Multiply(this.current_model_mat, this.model_mat) : this.model_mat;
};
this.Update = function(vp_size) {
if (vp_size)
this.vp = vp_size;
var current_T = this.Time();
this.current_model_mat = IdentM44()
var auto_angle_x = Fract( (current_T - this.rotate_start_T) / 13000.0 ) * 2.0 * Math.PI;
var auto_angle_y = Fract( (current_T - this.rotate_start_T) / 17000.0 ) * 2.0 * Math.PI;
this.current_model_mat = RotateAxis( this.current_model_mat, auto_angle_x, 0 );
this.current_model_mat = RotateAxis( this.current_model_mat, auto_angle_y, 1 );
};
}
varTexture = {};
Texture.HandleLoadedTexture2D = function( texture, flipY ) {
gl.activeTexture( gl.TEXTURE0 + texture.unit );
gl.bindTexture( gl.TEXTURE_2D, texture.obj );
gl.pixelStorei( gl.UNPACK_FLIP_Y_WEBGL, flipY != undefined && flipY == true );
gl.texImage2D( gl.TEXTURE_2D, 0, gl.RGBA, gl.RGBA, gl.UNSIGNED_BYTE, texture.image );
gl.texParameteri( gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR );
gl.texParameteri( gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR );
gl.texParameteri( gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.REPEAT );
gl.texParameteri( gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.REPEAT );
return texture;
}
Texture.LoadTexture2D = function( unit, name ) {
var texture = {};
texture.obj = gl.createTexture();
texture.unit = unit;
texture.image = newImage();
texture.image.setAttribute('crossorigin', 'anonymous');
texture.image.onload = function () {
Texture.HandleLoadedTexture2D( texture, false )
}
texture.image.src = name;
return texture;
}
varShProg = {
Create: function (shaderList) {
var shaderObjs = [];
for (var i_sh = 0; i_sh < shaderList.length; ++i_sh) {
var shderObj = this.Compile(shaderList[i_sh].source, shaderList[i_sh].stage);
if (shderObj) shaderObjs.push(shderObj);
}
var prog = {}
prog.progObj = this.Link(shaderObjs)
if (prog.progObj) {
prog.attrInx = {};
var noOfAttributes = gl.getProgramParameter(prog.progObj, gl.ACTIVE_ATTRIBUTES);
for (var i_n = 0; i_n < noOfAttributes; ++i_n) {
var name = gl.getActiveAttrib(prog.progObj, i_n).name;
prog.attrInx[name] = gl.getAttribLocation(prog.progObj, name);
}
prog.uniLoc = {};
var noOfUniforms = gl.getProgramParameter(prog.progObj, gl.ACTIVE_UNIFORMS);
for (var i_n = 0; i_n < noOfUniforms; ++i_n) {
var name = gl.getActiveUniform(prog.progObj, i_n).name;
prog.uniLoc[name] = gl.getUniformLocation(prog.progObj, name);
}
}
return prog;
},
AttrI: function (prog, name) { return prog.attrInx[name]; },
UniformL: function (prog, name) { return prog.uniLoc[name]; },
Use: function (prog) { gl.useProgram(prog.progObj); },
SetI1: function (prog, name, val) { if (prog.uniLoc[name]) gl.uniform1i(prog.uniLoc[name], val); },
SetF1: function (prog, name, val) { if (prog.uniLoc[name]) gl.uniform1f(prog.uniLoc[name], val); },
SetF2: function (prog, name, arr) { if (prog.uniLoc[name]) gl.uniform2fv(prog.uniLoc[name], arr); },
SetF3: function (prog, name, arr) { if (prog.uniLoc[name]) gl.uniform3fv(prog.uniLoc[name], arr); },
SetF4: function (prog, name, arr) { if (prog.uniLoc[name]) gl.uniform4fv(prog.uniLoc[name], arr); },
SetM33: function (prog, name, mat) { if (prog.uniLoc[name]) gl.uniformMatrix3fv(prog.uniLoc[name], false, mat); },
SetM44: function (prog, name, mat) { if (prog.uniLoc[name]) gl.uniformMatrix4fv(prog.uniLoc[name], false, mat); },
Compile: function (source, shaderStage) {
var shaderScript = document.getElementById(source);
if (shaderScript)
source = shaderScript.text;
var shaderObj = gl.createShader(shaderStage);
gl.shaderSource(shaderObj, source);
gl.compileShader(shaderObj);
var status = gl.getShaderParameter(shaderObj, gl.COMPILE_STATUS);
if (!status) alert(gl.getShaderInfoLog(shaderObj));
return status ? shaderObj : null;
},
Link: function (shaderObjs) {
var prog = gl.createProgram();
for (var i_sh = 0; i_sh < shaderObjs.length; ++i_sh)
gl.attachShader(prog, shaderObjs[i_sh]);
gl.linkProgram(prog);
status = gl.getProgramParameter(prog, gl.LINK_STATUS);
if ( !status ) alert(gl.getProgramInfoLog(prog));
return status ? prog : null;
} };
varVertexBuffer = {
Create: function(attribs, indices, type) {
var buffer = { buf: [], attr: [], inx: gl.createBuffer(), inxLen: indices.length, primitive_type: type ? type : gl.TRIANGLES };
for (var i=0; i<attribs.length; ++i) {
buffer.buf.push(gl.createBuffer());
buffer.attr.push({ size : attribs[i].attrSize, loc : attribs[i].attrLoc });
gl.bindBuffer(gl.ARRAY_BUFFER, buffer.buf[i]);
gl.bufferData(gl.ARRAY_BUFFER, newFloat32Array( attribs[i].data ), gl.STATIC_DRAW);
}
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, buffer.inx);
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER, newUint16Array( indices ), gl.STATIC_DRAW);
gl.bindBuffer(gl.ARRAY_BUFFER, null);
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, null);
return buffer;
},
Draw: function(bufObj) {
for (var i=0; i<bufObj.buf.length; ++i) {
gl.bindBuffer(gl.ARRAY_BUFFER, bufObj.buf[i]);
gl.vertexAttribPointer(bufObj.attr[i].loc, bufObj.attr[i].size, gl.FLOAT, false, 0, 0);
gl.enableVertexAttribArray( bufObj.attr[i].loc);
}
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, bufObj.inx);
gl.drawElements(bufObj.primitive_type, bufObj.inxLen, gl.UNSIGNED_SHORT, 0);
for (var i=0; i<bufObj.buf.length; ++i)
gl.disableVertexAttribArray(bufObj.attr[i].loc);
gl.bindBuffer( gl.ARRAY_BUFFER, null );
gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, null );
} };
initScene();
})();html,body { margin: 0; overflow: hidden; }
#gui { position : absolute; top : 0; left : 0; }<scriptid="draw-shader-vs"type="x-shader/x-vertex">
precision highp float;
attribute vec3 a_position;
attribute vec3 a_normal;
attribute vec2 a_texCoord;
varying vec3 w_pos;
varying vec3 w_nv;
varying vec2 o_uv;
uniform mat4 P;
uniform mat4 V;
uniform mat4 M;
voidmain()
{
o_uv = a_texCoord;
w_nv = normalize(mat3(M) * a_normal);
vec4 worldPos = M * vec4(a_position, 1.0);
w_pos = worldPos.xyz;
gl_Position = P * V * worldPos;
}
</script><scriptid="draw-shader-fs"type="x-shader/x-fragment">
#extension GL_OES_standard_derivatives : enable
precision mediump float;
varying vec3 w_pos;
varying vec3 w_nv;
varying vec2 o_uv;
uniform float u_height_scale;
uniform vec3 u_light_pos;
uniform vec3 u_view_pos;
uniform sampler2D u_diffuse;
uniform sampler2D u_normal_map;
uniform sampler2D u_displacement_map;
vec2 ParallaxMapping (vec2 texCoord, vec3 viewDir)
{
float numLayers = 32.0 - 31.0 * abs(dot(vec3(0.0, 0.0, 1.0), viewDir));
float layerDepth = 1.0 / numLayers;
vec2 P = viewDir.xy / viewDir.z * u_height_scale;
vec2 deltaTexCoords = P / numLayers;
vec2 currentTexCoords = texCoord;
float currentLayerDepth = 0.0;
float currentDepthMapValue = texture2D(u_displacement_map, currentTexCoords).r;
for (int i=0; i<32; ++ i)
{
if (currentLayerDepth >= currentDepthMapValue)
break;
currentTexCoords -= deltaTexCoords;
currentDepthMapValue = texture2D(u_displacement_map, currentTexCoords).r;
currentLayerDepth += layerDepth;
}
vec2 prevTexCoords = currentTexCoords + deltaTexCoords;
float afterDepth = currentDepthMapValue - currentLayerDepth;
float beforeDepth = texture2D(u_displacement_map, prevTexCoords).r - currentLayerDepth + layerDepth;
float weight = afterDepth / (afterDepth - beforeDepth);
return prevTexCoords * weight + currentTexCoords * (1.0 - weight);
}
voidmain()
{
vec3 N = normalize(w_nv);
vec3 dp1 = dFdx( w_pos );
vec3 dp2 = dFdy( w_pos );
vec2 duv1 = dFdx( o_uv );
vec2 duv2 = dFdy( o_uv );
vec3 dp2perp = cross(dp2, N);
vec3 dp1perp = cross(N, dp1);
vec3 T = dp2perp * duv1.x + dp1perp * duv2.x;
vec3 B = dp2perp * duv1.y + dp1perp * duv2.y;
float invmax = inversesqrt(max(dot(T, T), dot(B, B)));
mat3 tm = mat3(T * invmax, B * invmax, N);
mat3 tbn_inv = mat3(vec3(tm[0].x, tm[1].x, tm[2].x), vec3(tm[0].y, tm[1].y, tm[2].y), vec3(tm[0].z, tm[1].z, tm[2].z));
vec3 view_dir = tbn_inv * normalize(w_pos - u_view_pos);
vec2 uv = ParallaxMapping(o_uv, view_dir);
if (uv.x > 1.0 || uv.y > 1.0 || uv.x < 0.0 || uv.y < 0.0)
discard;
vec3 L = tbn_inv * normalize(u_light_pos - w_pos);
vec3 mapN = normalize(texture2D(u_normal_map, uv.st).xyz * 2.0 - 1.0);
float kd = max(0.0, dot(mapN, L));
vec3 color = texture2D(u_diffuse, uv.st).rgb;
vec3 light_col = (0.1 + kd) * color.rgb;
gl_FragColor = vec4(clamp(light_col, 0.0, 1.0), 1.0);
}
</script><body><div><formid="gui"name="inputs"><table><tr><td><fontcolor=#CCF>height scale</font></td><td><inputtype="range"id="height"min="0"max="100"value="50"/></td></tr></table></form></div><canvasid="canvas"style="border: none;"width="100%"height="100%"></canvas>
Post a Comment for "Bump Mapping With Javascript And Glsl"
